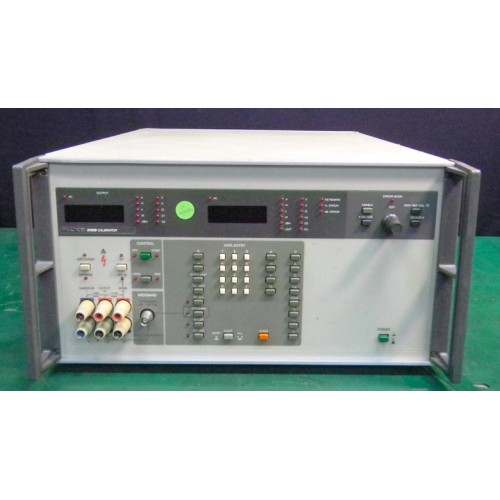

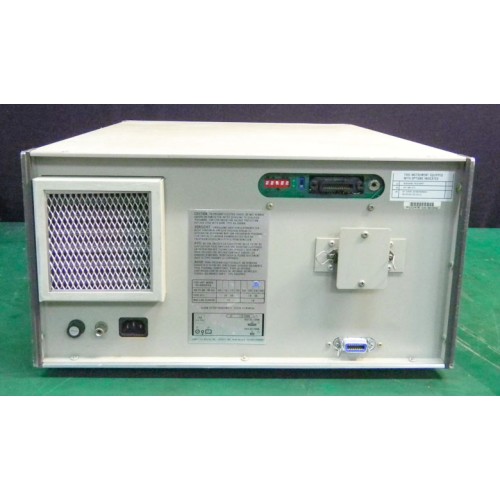

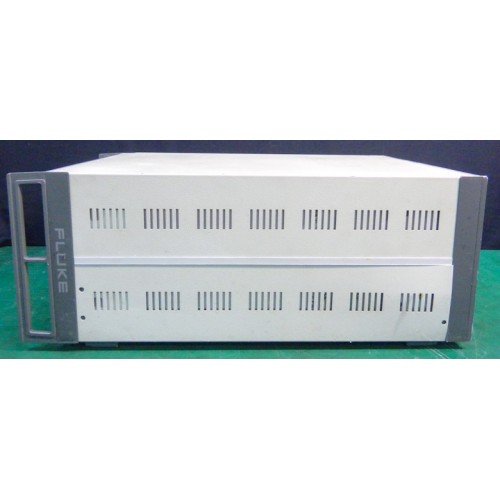

The 5100B supplies AC & DC voltage, AC & DC current, and resistance for precise applications, such as calibrating digital multimeters.
The 5100B AC/DC Calibrator calibrates precision meters that measure AC or DC Voltage (0-1100V), AC or DC current (200 uA-2A), and Resistance (1 ohm to 10 Mohms). Accuracies are: DC voltage and resistance (0.005%), DC current (0.025%) AC Volts (0.05%) and AC current (0.07%).
Features:
- DC & AC Volts: 20 mV to 1100 V full scale (0.1 MicroV resolution)
- 50 Hz to 50 kHz frequency of standard unit
- DC & AC Current from 200 MicroA to 2A full scale
- 1 O to 10 MO resistance in decade steps
- Wideband option
- HP-IB and Bit serial interface
- Drivers incorporate it into an ATE system using Flukes MET/CAL Software
