S-Parameter Vector Network Analyser

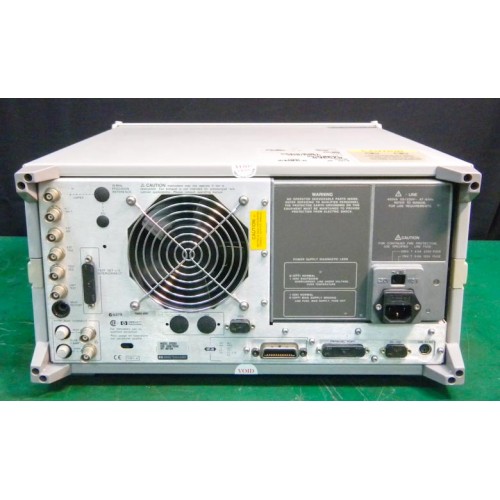

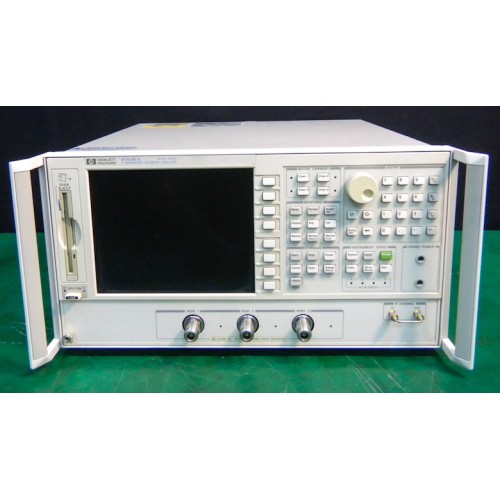

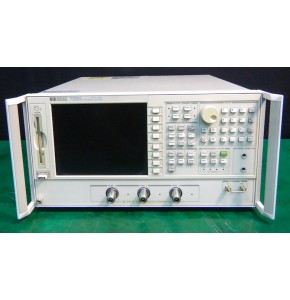

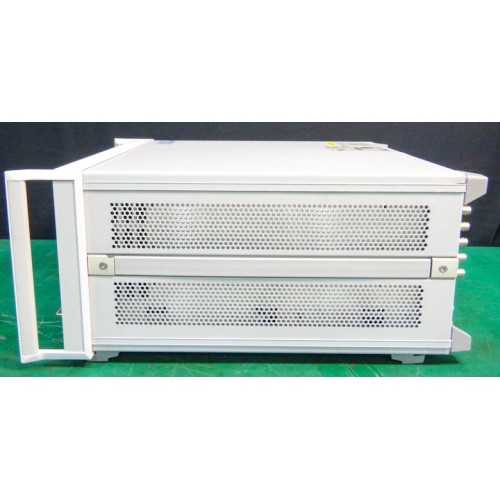

The Agilent 8753ES vector network analyzer allows complete characterization of RF components. The 8753ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port calibration, adapter-removal and TRL*/LRM* calibration.

The 8753ET/ES family includes both T/R and S-parameter test sets, covering 3 and 6 GHz.

- See more at: http://www.testequipmentconnection.com/33017/Agilent_8753ES-006-1D5.php#sthash.B4DB6PAx.dpuf

• 30 kHz to 3 or 6 GHz
• Frequency and power sweeps
• Available in 50- and 75-ohm
• Optional time-domain, harmonics measurement, .configurable test set, delete test set
• Optional Electronic calibration module (ECal)
